Envirocalc

Envirocalc is Envirocon’s proprietary structural design tool developed specifically for precast concrete block wall systems. Designed for Australian, it enables engineers, designers, and construction professionals to perform real-time structural assessments for applications such as retaining walls, bulk material storage, and separation walls. Fully aligned with relevant Australian Standards (AS/NZS codes), Envirocalc ensures that design outcomes are not only fast and efficient but also robust and compliant with regulatory expectations.

Envirotrac is packed with features and developed to be a one stop shop for structural engineering design for Envirocon's precast construction systems.

Made for Australia – Compliant with AS/NZS 1170.0:2002, 1170.1:2002, and AS 4678:2002 for safety and engineering integrity.

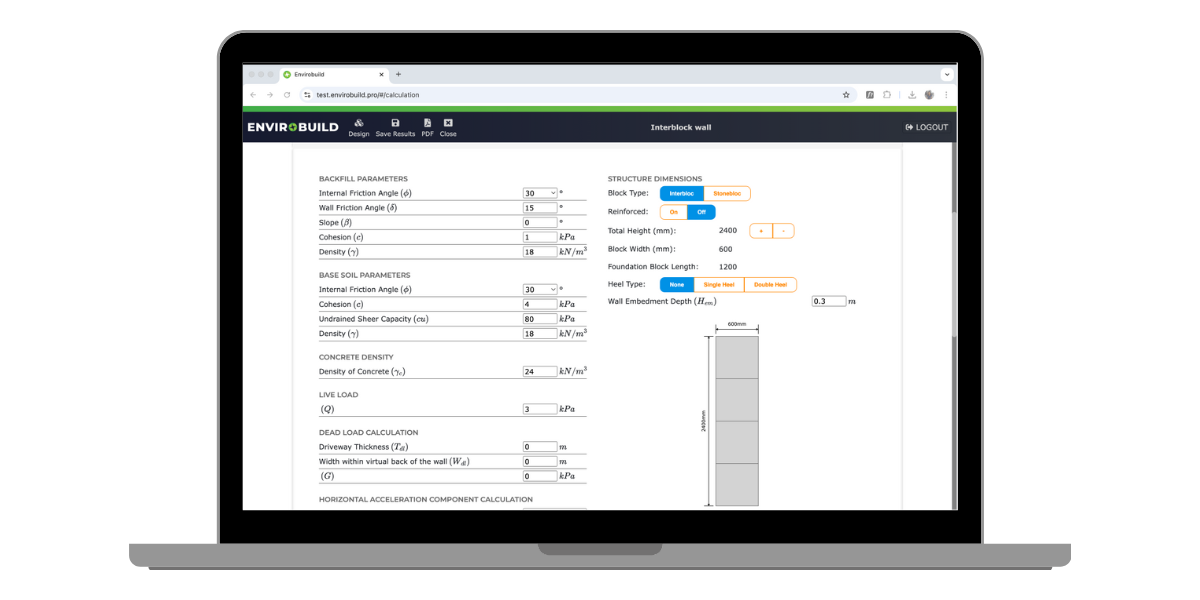

User-Friendly Interface – Intuitive, simple user interface sets Envirocalc apart and dynamically displays results in real time.

Auto-Generated Design Reports – One-click PDF reports ready for client submission or approval.

Multiple Configurations – Supports varied wall heights, surcharge loads, reinforcing techniques, and block types used across Australia

Real-Time Calculations – Instantly perform structural checks and view design adjustments live.

Cloud-Based Platform – Accessible from any device, anywhere—no installation required.

Envirocalc offers a unparalleled combination of benefits that delivers faster design times at a lower cost.

Faster Design Turnaround – Complete engineering designs in minutes, not days.

Streamlined Approval Process – Professional, standards-aligned reports that support council and client approval.

Increased Accuracy – Reduce manual errors with automated load checks and standardised design logic.

Optimised Material Use – Fine-tune block selection and layout for both performance and cost efficiency.

Reduced Engineering Costs – Empower internal teams to complete preliminary designs.

Confidence in Compliance – Backed by structural methodology that aligns with Australian Standards for gravity walls.

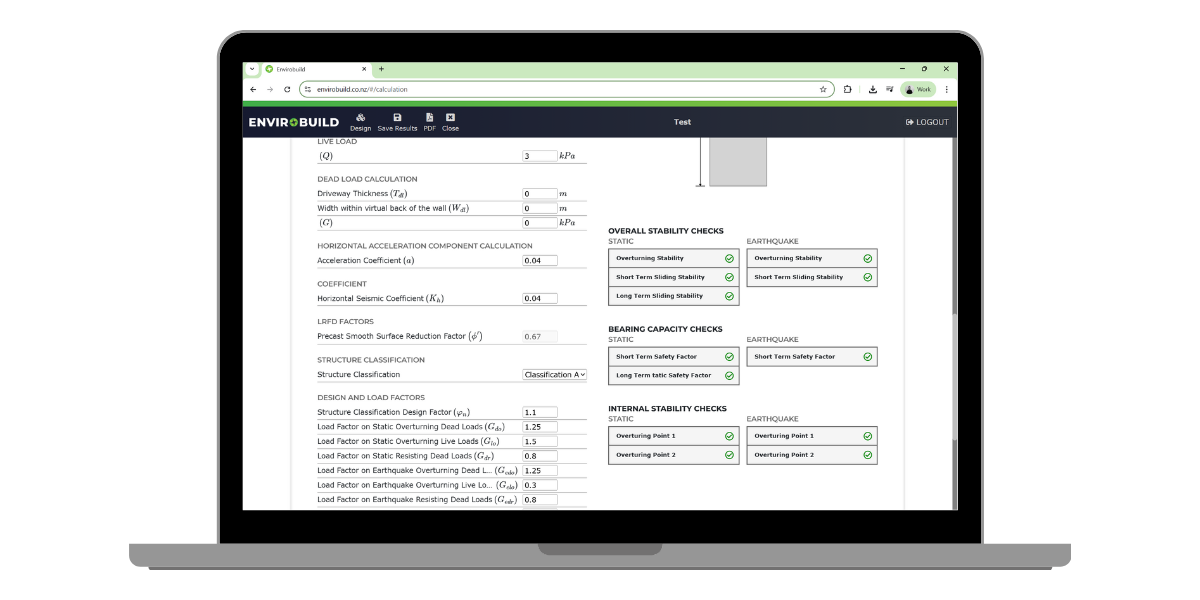

Envirocalc performs key structural verifications to ensure wall safety and performance, including:

• Sliding Resistance

• Overturning Stability

• Bearing Pressure

• Block Shear Capacity

• Surcharge Load Impact

• Internal Block Stability

All checks are executed in line with AS 4678, AS 3600, and other relevant Australian design codes for precast and gravity retaining structures.

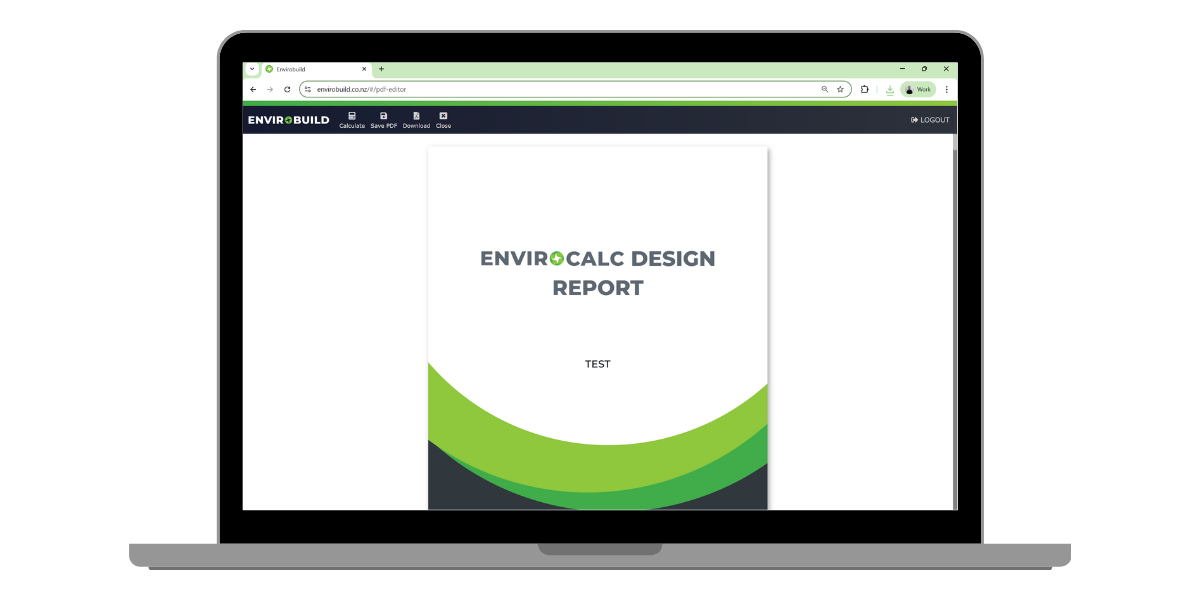

With one click, Envirocalc generates comprehensive PDF reports that include:

• Project details and inputs

• Wall layout and block configuration

• Load and soil condition assumptions

• Structural check summaries and outcomes

• Compliance notes referencing relevant AS standards

• Visuals and diagrams for clear presentation

These reports are ideal for sharing with engineers, project managers, clients, and local authorities as part of your submission package.
